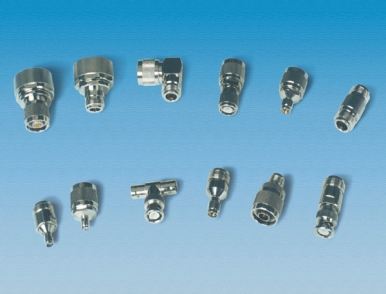

接头转换器
型号 阻抗 工作频段 驻波比 插入损耗 机械寿命 耐压 备注
(Ω) (GHz) (dB) (次) (KV)
N/SMA-JJ 50 0-11 ≤1.1 ≤0.1 >500 1
N/SMA-KJ 50 0-11 ≤1.1 ≤0.1 >500 1
N/SMA-JK 50 0-11 ≤1.1 ≤0.1 >500 1
N/SMA-KK 50 0-11 ≤1.1 ≤0.1 >500 1
N/N-KK 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/N-KJ 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/N-KJW 50 0-11 ≤1.1 ≤0.1 >500 1.5 拐角转接头
N/DIN-KJ 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/DIN-JJ 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/TNC-JJ 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/TNC-JK 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/TNC-KJ 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/TNC-KK 50 0-11 ≤1.1 ≤0.1 >500 1.5
N/BNC-JJ 50 0-4 ≤1.1 ≤0.1 >500 1.5
N/BNC-KJ 50 0-4 ≤1.1 ≤0.1 >500 1.5
N/BNC-JK 50 0-4 ≤1.1 ≤0.1 >500 1.5
N/BNC-KK 50 0-4 ≤1.1 ≤0.1 >500 1.5
